Solar Tracking Carport

Products

 We provide the design, customized manufacture, logistics, and one-stop purchasing of solar trackers, meet requirements of different clients.

solar tracking carport
Solar Tracking

Solar Tracking Carport

solar
tracker

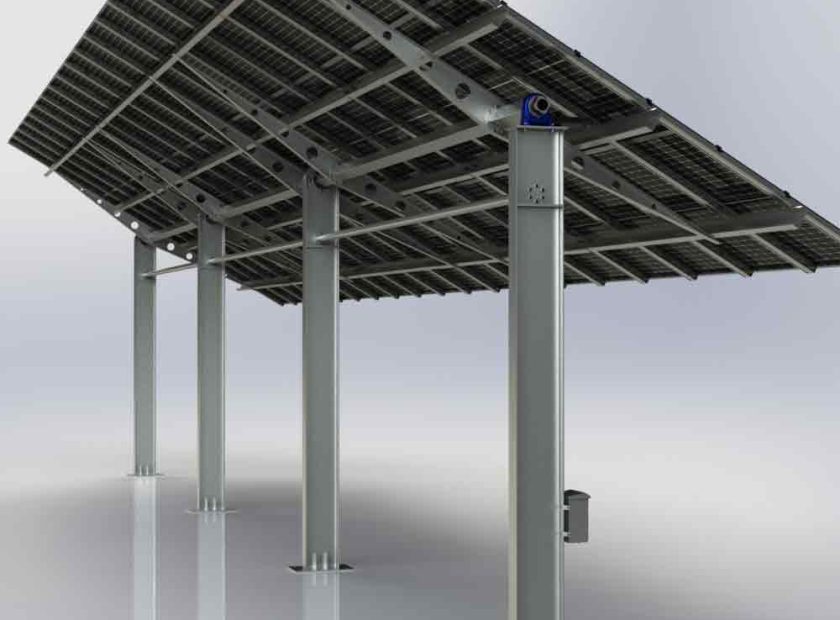

The solar tracking carport added solar tracker on the ordinary fixed carport, it equipped with an astronomical algorithm controller, which determines the real-time position of the sun based on the longitude, latitude, then the beam and solar panels is driven by slewing drive to rotate with a rotation angle of ± 30 °, allowing real-time tracking of the sun’s position, ensuring that sunlight always shines at the most angle on the solar panel, achieving maximum power generation efficiency.

Advantage

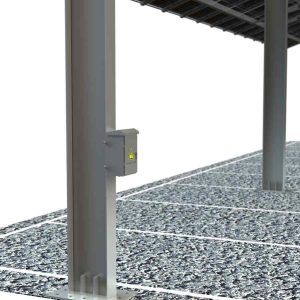

High Strength Strut

advantage

The strut is the foundation of the entire carport and must be strong enough to support the carport.BOFU carport strut is made of high strength large size carbon steel to ensure the wind resistance and load bearing of the carport and ensure the stability of the carport.

solar tracking carport
solar tracking carport
Advantage

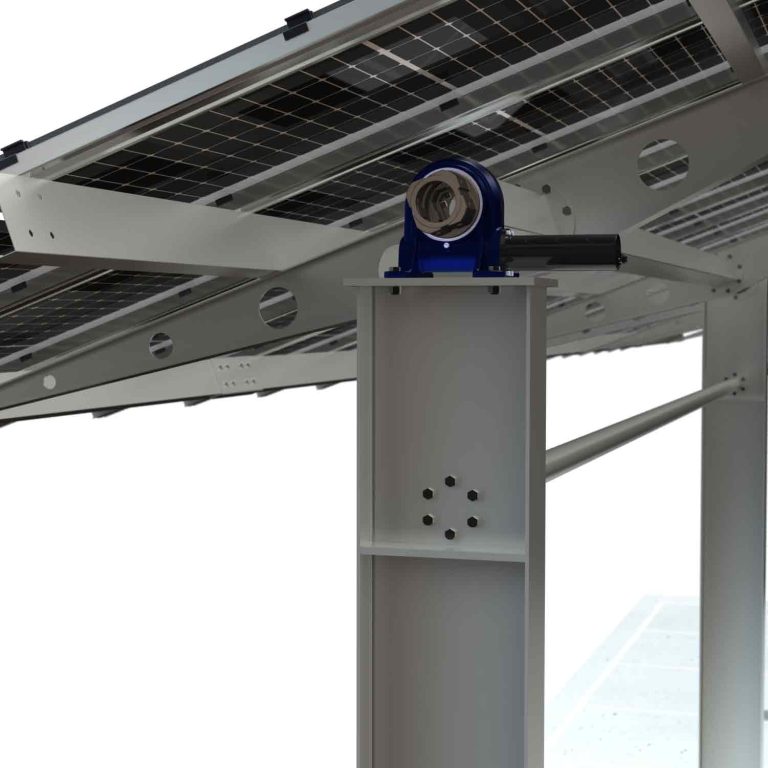

High Torque Slewing Drive

advantage

The solar tracking carport was driven by high toque slewing drive, which will bring solar panels rotate to track sun timely, keep sunlight always shining at the most angle on the panel at daytime, improve power generation efficiently.

Advantage

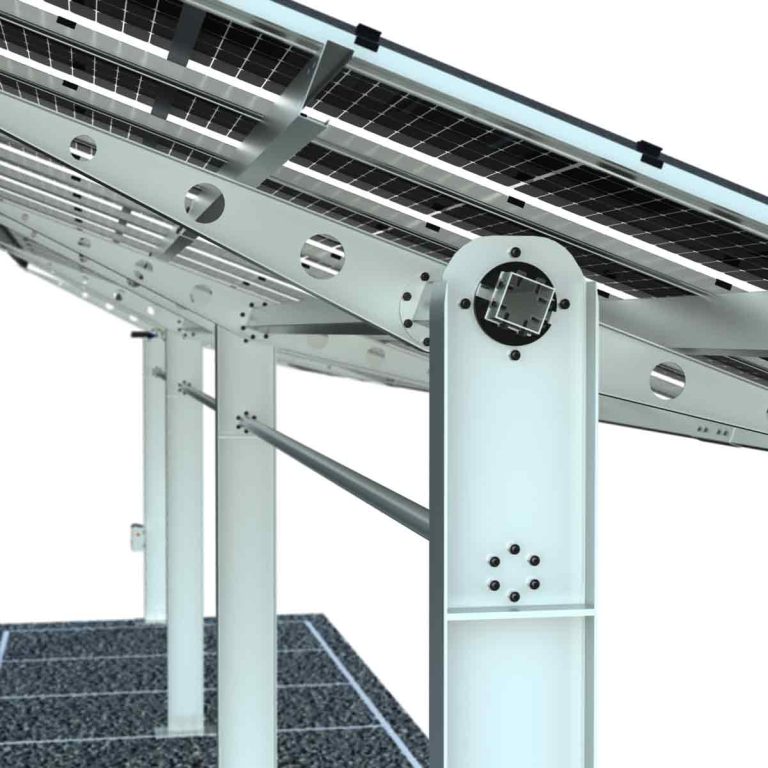

High Strength Purlins

advantage

The purlins follows the rotation and supports the top solar panel, so its strength must be guaranteed. BOFU purlins use high strength carbon steel or aluminum alloy as raw materials, reasonable design structure makes all directions of purlins evenly stressed, whether it is on rotation angle or horizon, it can withstand enough pressure to ensure the safety of solar panels on the roof of the carport.

solar tracking carport
solar tracking carport
Advantage

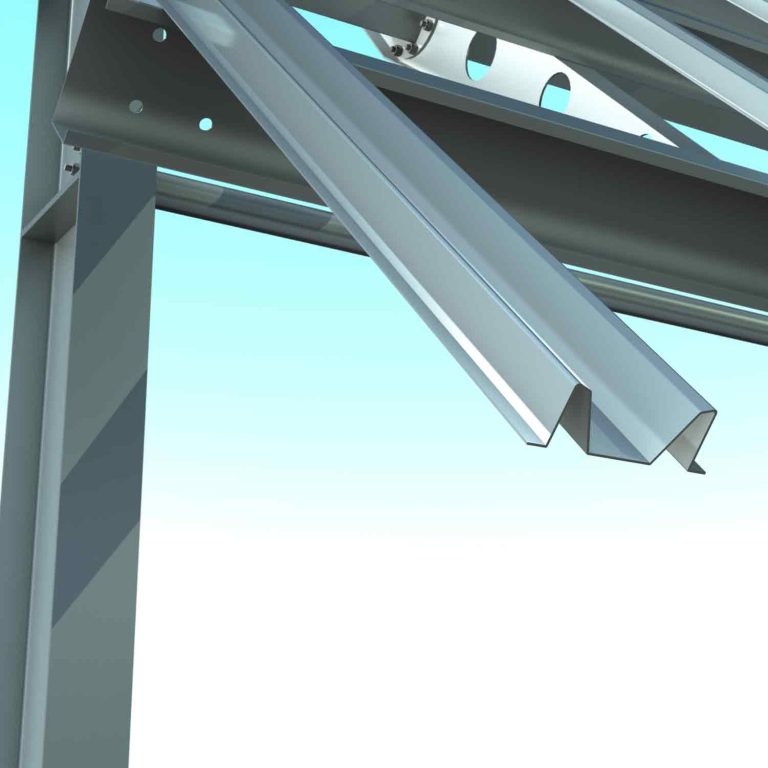

Waterproof Sink

advantage

The M-shaped waterproof sink using for waterproofs and drains, reducing water accumulation in the carport in rainy days.

Advantage

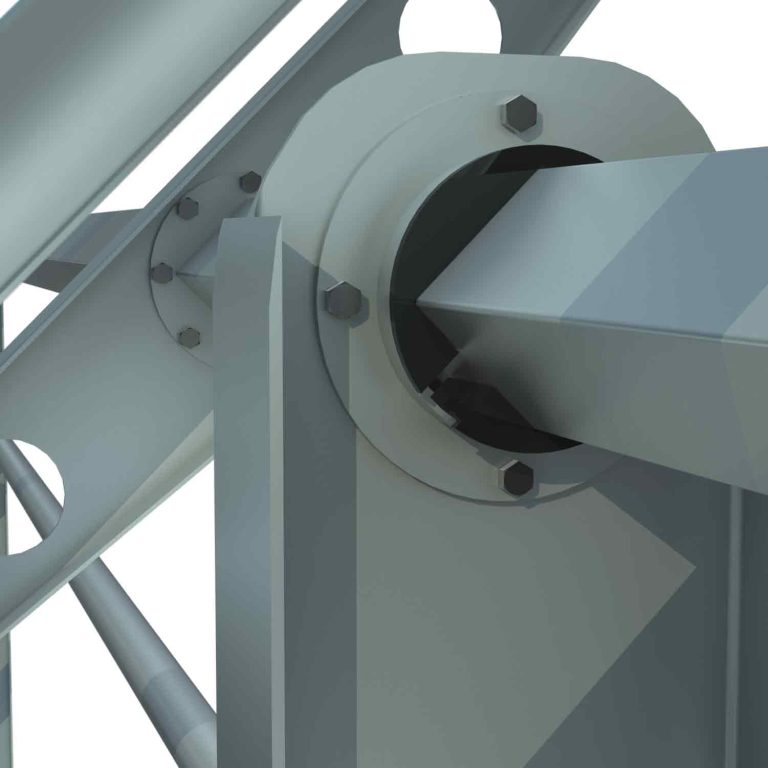

Plastic self lubricat bearing

advantage

Plastic self lubricate bearings not only ensure smooth rotation of the purlins, but also make maintenance and replacement easier.

solar tracking carport

Data Sheet

ITEM
VALUE
Products NameSolar Tracking Carport
BrandBOFU
OriginalChina
Wind Resistance35m/s
Snow Resistance1.6KN/sqm
Service Life>25 Years
FeaturesPitch Rotate
DriveSlewing Drive
Voltage24V
Daily Power Consumption≤0.5kwh
Horizon Rotate Range±30°
MaterialQ345/Q235
Surface TreatmentHot Dip Galvanizing
Tracking MethodAstronomical Algorithm+Time
FoundationConcrete Foundation
